Condition: Refurbished

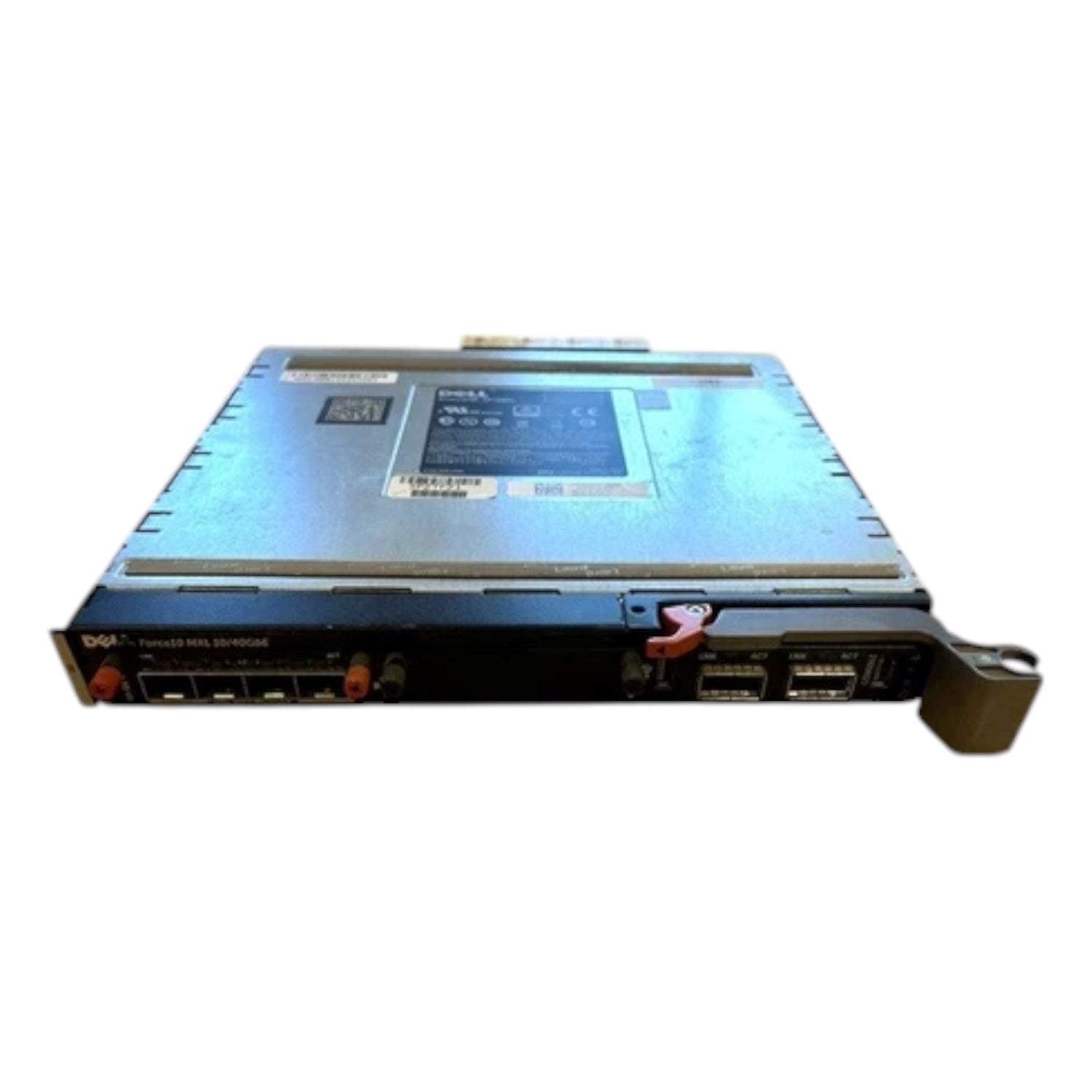

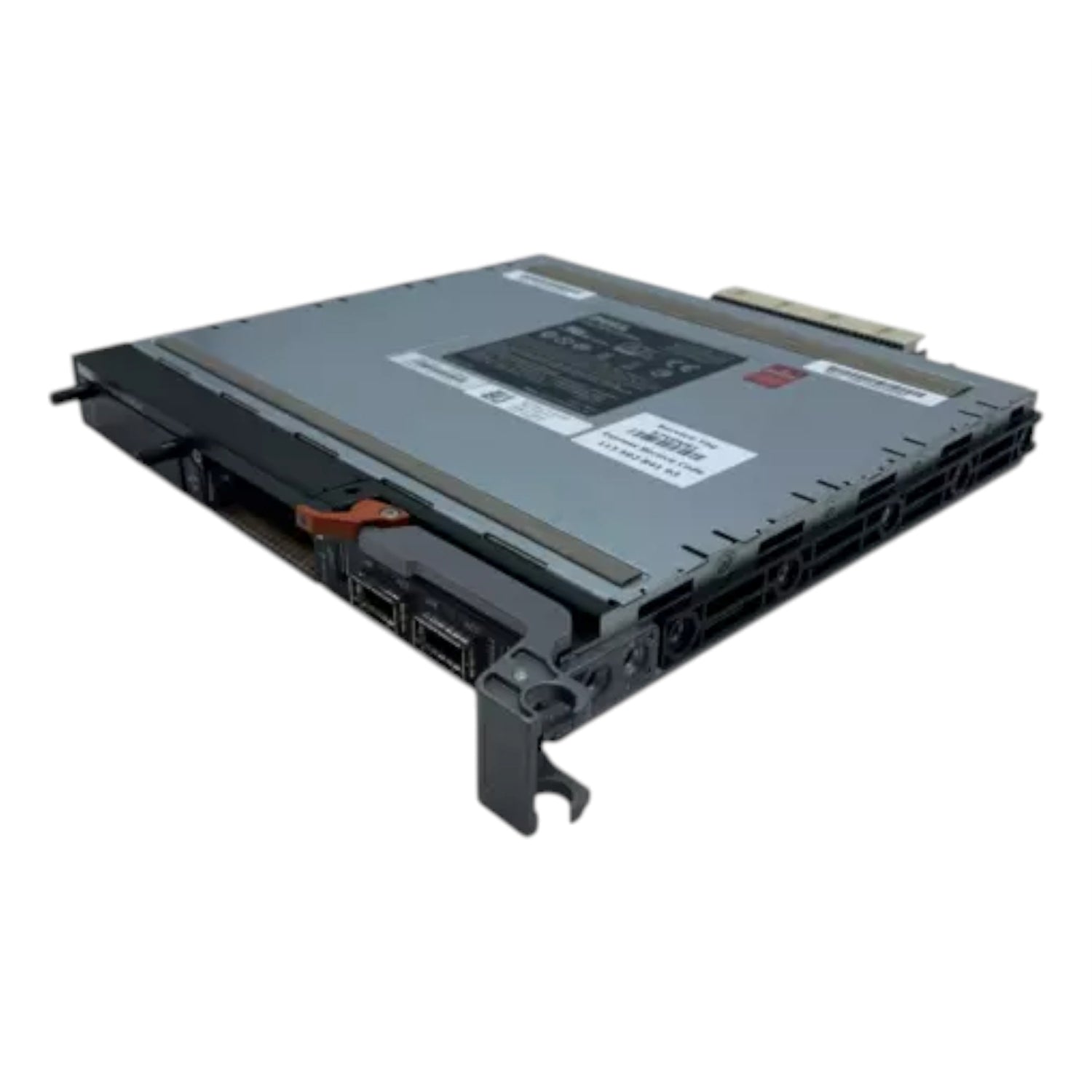

Dell DF10MXL

The Dell DF10MXL is a high-performance 10/40GbE blade switch designed for the Dell PowerEdge M1000e blade server chassis. It provides scalable, low-latency networking with support for both Layer 2 and Layer 3 switching. The switch is optimized for data center environments, offering features like high-density port configurations, advanced virtualization support, and robust stacking capabilities.

Features:

• Switch Type: Layer 2/3 blade switch
• Base Module Ports: 2 × 40GbE QSFP+ ports (can be split into 8 × 10GbE SFP+ ports using breakout cables)
• Expansion Slots: 2 × FlexIO slots supporting various modules: 2-Port 40GbE QSFP+ module 4-Port 10GbE SFP+ module 4-Port 10GBASE-T module
• Internal Ports: 32 × 1/10GbE ports connected to server blades through the chassis midplane

Whats in the Box?

• DF10MXL

Specifications:

General Information

• Number of Ports: 2
• Model Number: DF10MXL
• Item Dimensions - H x W x D (IN): 1.2 x 18.9 x 10.1
• Airflow: N/A
• Power Source Type: AC
• Item Weight (LBS): 3.75
