Condition: Refurbished

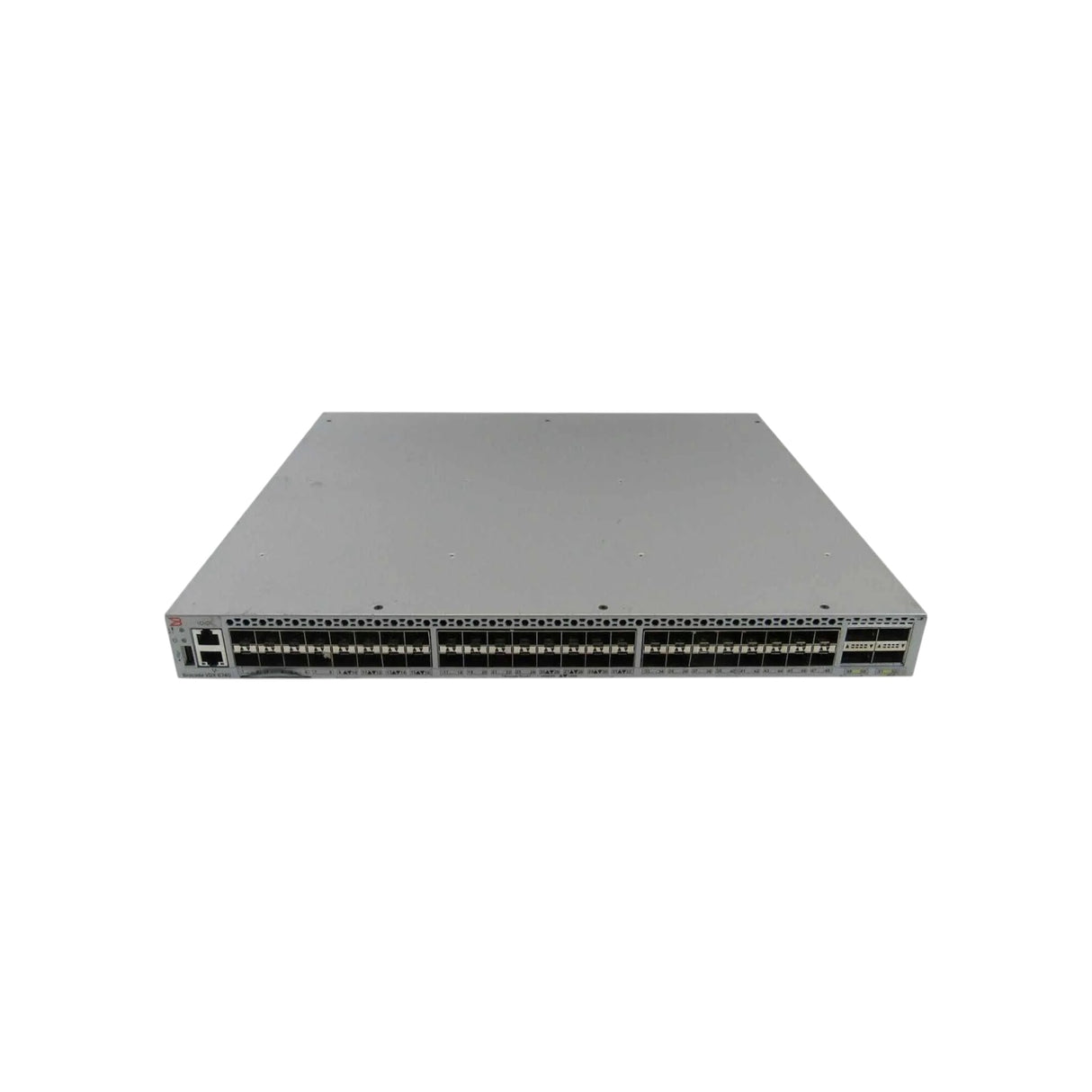

Brocade BR-VDX6740-24-R

The BR‑VDX6740‑24‑R is a 1U rack‑mountable, managed Layer‑3 switch from the Brocade VDX‑6740 family. It’s designed for data‑center / enterprise deployments needing 10 GbE and 40 GbE connectivity, high throughput, and flexible port‑on‑demand expansion. Ports & uplinks: 48 × 10 GbE SFP+ (24 active by default on some versions) + 4 × 40 GbE QSFP+ uplink ports (with breakout support for additional 10 GbE ports) — allowing flexible deployment and scaling.

Features:

• Performance: 1.28 Tbps switching fabric bandwidth, ~ 960 Mpps forwarding rate, and low inter‑port latency (~850 ns).
• Scale & capacity: MAC address table ~ 160,000 entries; supports large numbers of VLANs, routes, ARP entries, ACLs, etc.
• Ports & connectivity: up to 48 × 10 Gbit SFP+ (24 active by default) + 4 × 40 Gbit QSFP+ uplinks (breakout / expansion‑capable).
• Advanced networking & L2/L3 features: VLANs, link‑aggregation (LACP), Spanning‑Tree/RSTP/MSTP (with PVST+/PVRST+), routing (static, OSPF, BGP, VRRP, multicast PIM, etc.), IPv4/IPv6 support, ACLs, QoS, flow control, jumbo frames (to 9216 bytes), and Data‑Center Bridging (DCB, DCBX) support.

Whats in the Box?

• BR-VDX6740-24-R

Specifications:

General Information

• Number of Ports: 24
• Model Number: BR-VDX6740-24-R
• Item Dimensions - H x W x D (IN): 1.75 x 17.32 x 16.14
• Airflow: AFI (Back to Front)
• Power Source Type: AC
• Item Weight (LBS): 19.1
