Condition: Refurbished

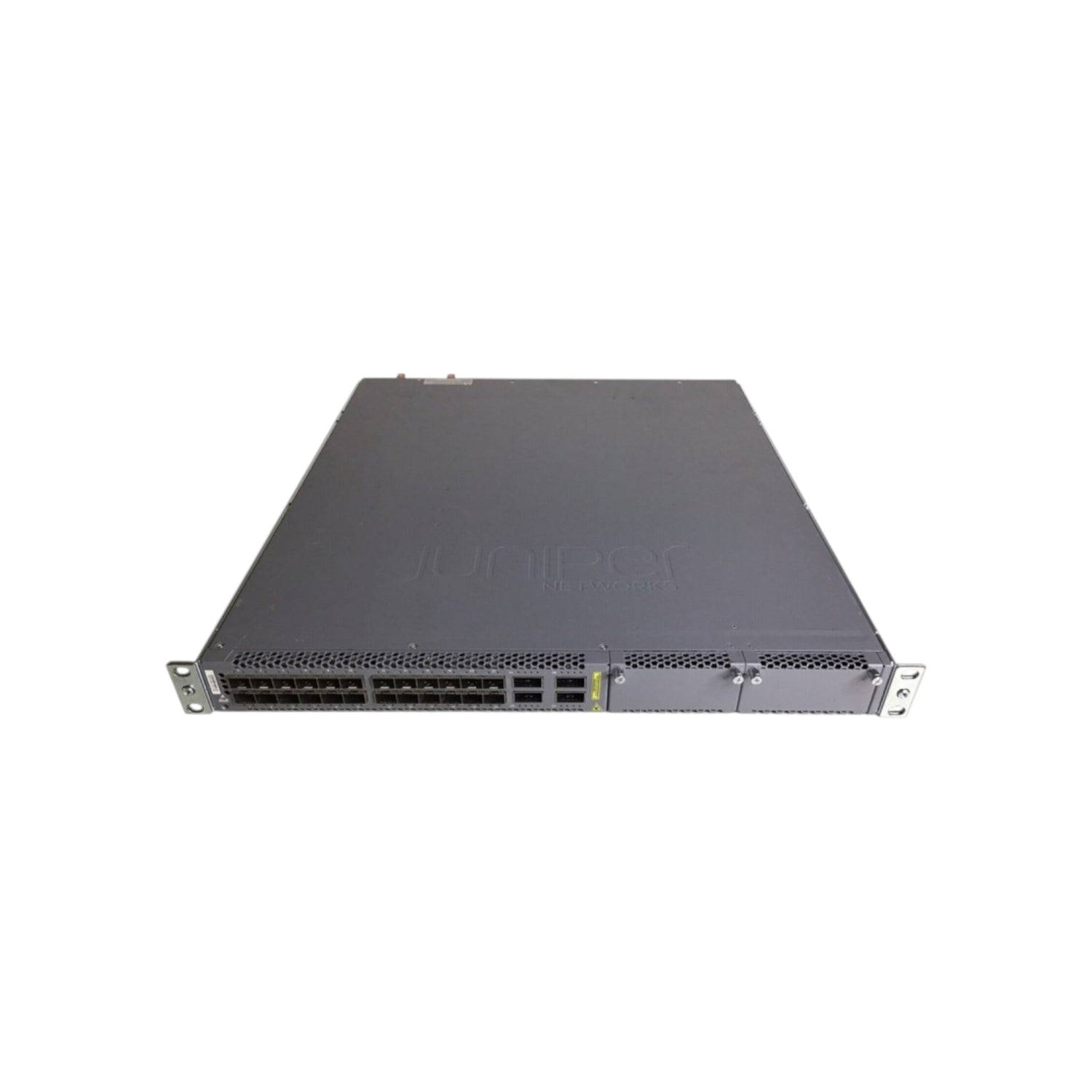

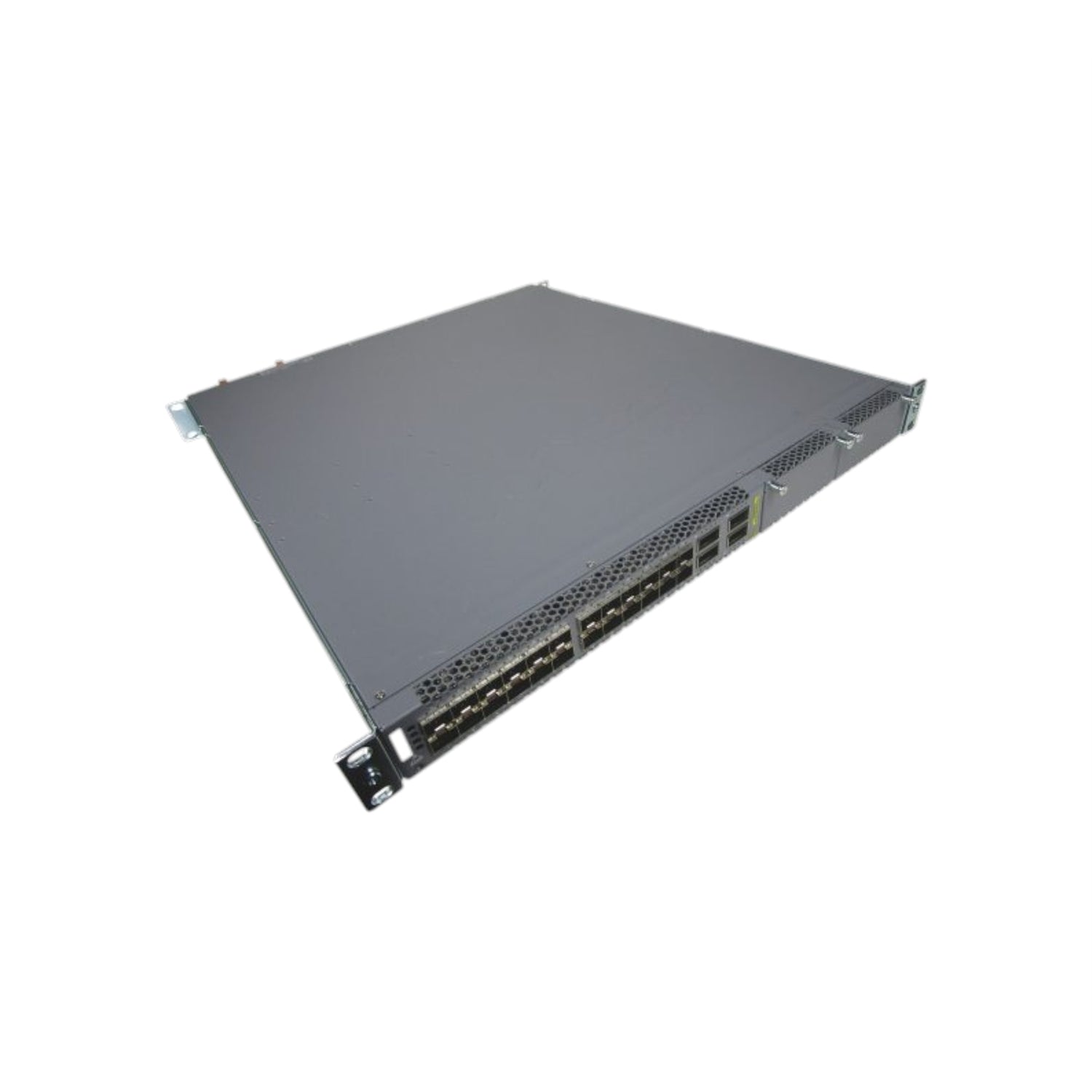

Juniper EX4600-40F

The Juniper EX4600-40F is a high-performance, 1U Ethernet switch designed for enterprise campus cores, distribution layers, and small data center top-of-rack deployments. It delivers high-density 10GbE and 40GbE connectivity with a compact form factor and low latency forwarding. It features a fixed port configuration of 24 × 1/10GbE SFP/SFP+ ports and 4 × 40GbE QSFP+ uplink ports, with support for expansion modules that can significantly increase port density (up to ~72 × 10GbE or 12 × 40GbE depending on configuration). It supports both Layer 2 and Layer 3 switching, offering line-rate performance up to 1.44 Tbps switching capacity.

Features:

• Up to 1.44 Tbps switching capacity Up to 1,071 Mpps forwarding rate (line-rate) Low-latency, cut-through and store-and-forward switching Designed for campus core, distribution, and small data center roles
• 24 × 1GbE/10GbE SFP/SFP+ ports 4 × 40GbE QSFP+ uplink ports QSFP+ supports: 40GbE mode 4 × 10GbE breakout per port
• 72 × 10GbE ports (max with modules) Up to 12 × 40GbE (with expansion)
• Full Layer 2 switching + Layer 3 routing Supports: VLANs (up to 4,096) Spanning Tree (802.1s / 802.1w) Link Aggregation (LACP) Static and dynamic routing (OSPF, etc. depending on license) Jumbo frames up to 9,000 bytes IGMP snooping for multicast control

Whats in the Box?

• EX4600-40F

Specifications:

General Information

• Number of Ports: 28
• Model Number: EX4600-40F-LC
• Item Dimensions - H x W x D (IN): 1.72 x 17.6 x 20.48
• Airflow: AFO (Front to Back)
• Power Source Type: AC
• Item Weight (LBS): 21.7
